FTMS—Firefighter Total Monitoring System—is an on-scene firefighter tracking system that ensures firefighter safety and helps prevent first responder deaths. Know where your firefighters are, keep track of crew assignments and communicate in real-time for smooth fire ground operations to save valuable minutes and seconds that could mean the difference between life and death.
Seamless communication
and coordination
Real-time, centralized
monitoring and tracking
User-friendly interface for
intuitive operation
Rugged design to withstand hars
conditions
The FTMS utilizes an integrated LoRa Module for advanced wireless communication. It enables long-range connectivity with low power consumption and robust network support for multiple devices, overcoming satellite transmission challenges for reliable connections in any location.
Our FTMS monitors field personnel in real-time and fosters inter-firefighter communication and coordination, ensuring firefighter safety, preventing first responder deaths, and enhancing emergency operation success.
Designed to ensure consistent connectivity and optimal performance in diverse environmental stressors, our IP67-certified FTMS devices are dust resistant and withstand submersion in water of up to 1 meter (40 inches) depth for 30 minutes.
| Model/Item No. | LTR2510-RCL |
|---|---|
| Dimensions (mm) | 60 W x 110 D x 20 H |
| Weight | 125 g |
| Battery | Rechargeable Ni-MH Battery (600mAh) |
| Baud Rate | 512 bps, 1200 bps |
| Frequency Rate | 420.0250~469.9875MHz |
| Model/Item No. | LTR2510-RCL |
|---|---|
| Dimensions (mm) | 60 W x 110 D x 20 H |
| Weight | 125 g |
| Battery | Rechargeable Ni-MH Battery (600mAh) |
| Baud Rate | 512 bps, 1200 bps |
| Frequency Rate | 420.0250~469.9875MHz |

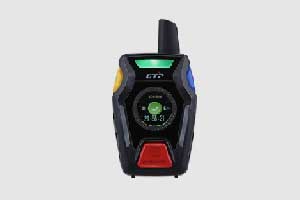

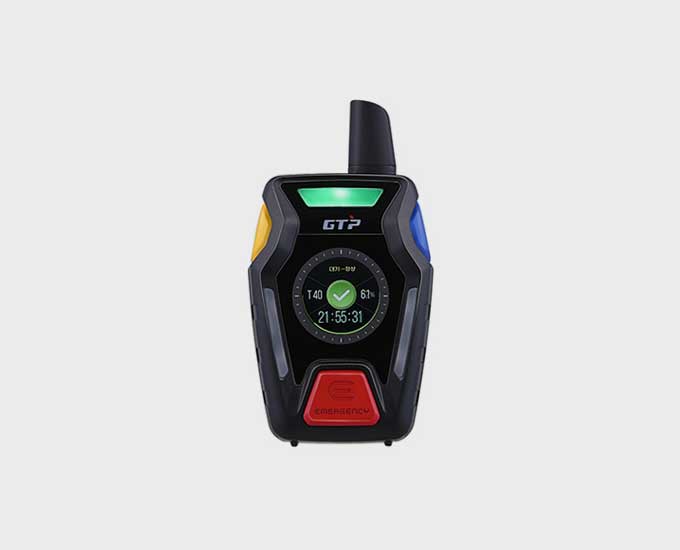

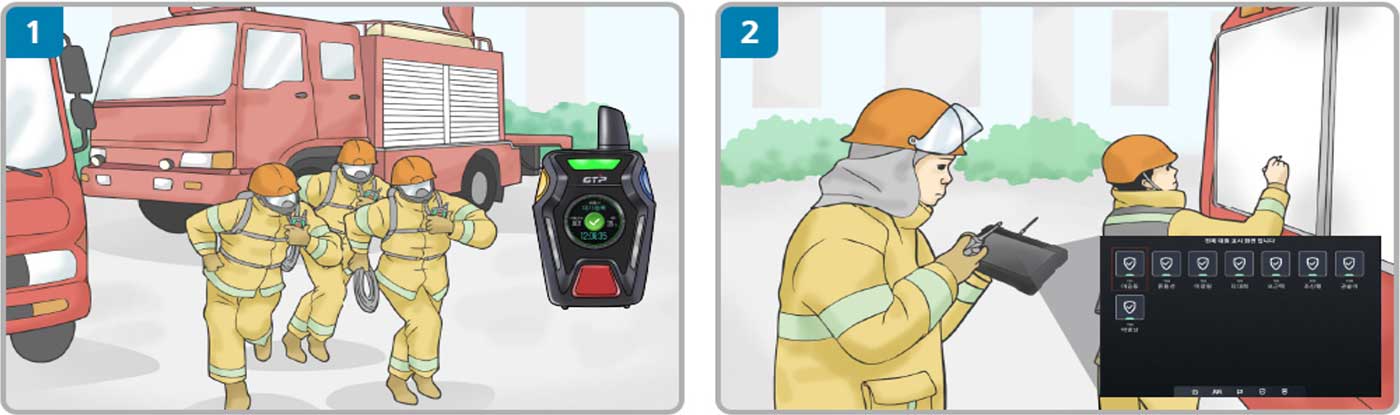

PDs are activated when removed from the charger, indicated by a green LED light. Activated PDs send activation signals to the CD to establish communication and initiate real-time monitoring.

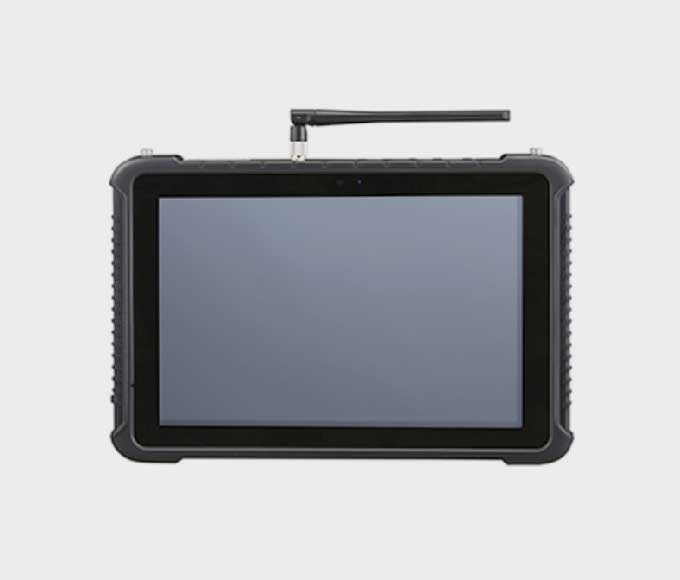

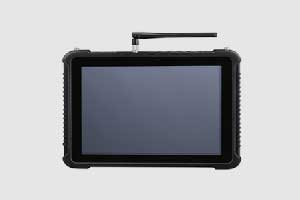

CD automatically detects, registers, and monitors activated PDs, displaying the status and location of each firefighter.

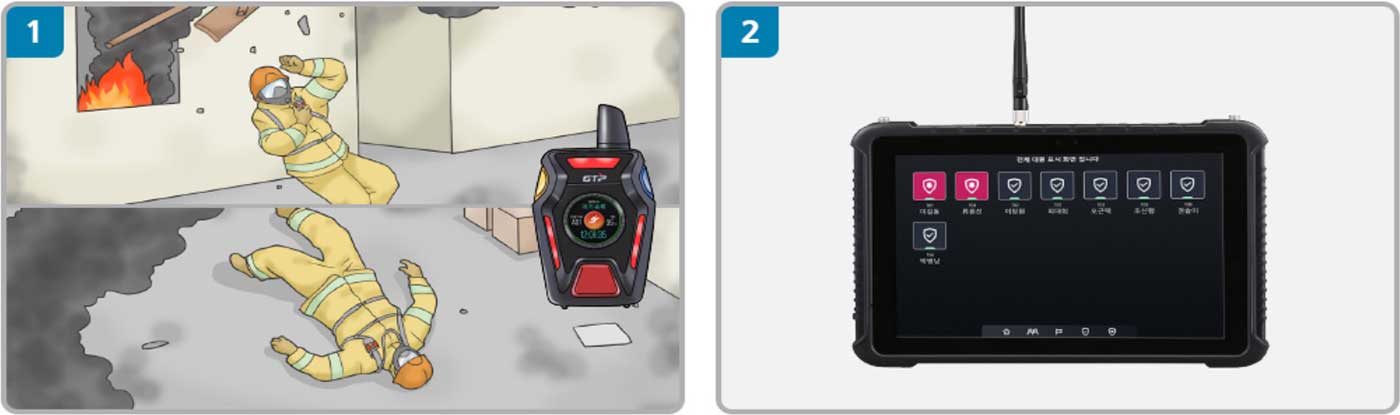

alerts surrounding personnel with an audible alarm and flashing red lights, and sends an emergency signal to the CD.
CD automatically detects, registers, and monitors activated PDs, displaying the status and location of each firefighter.

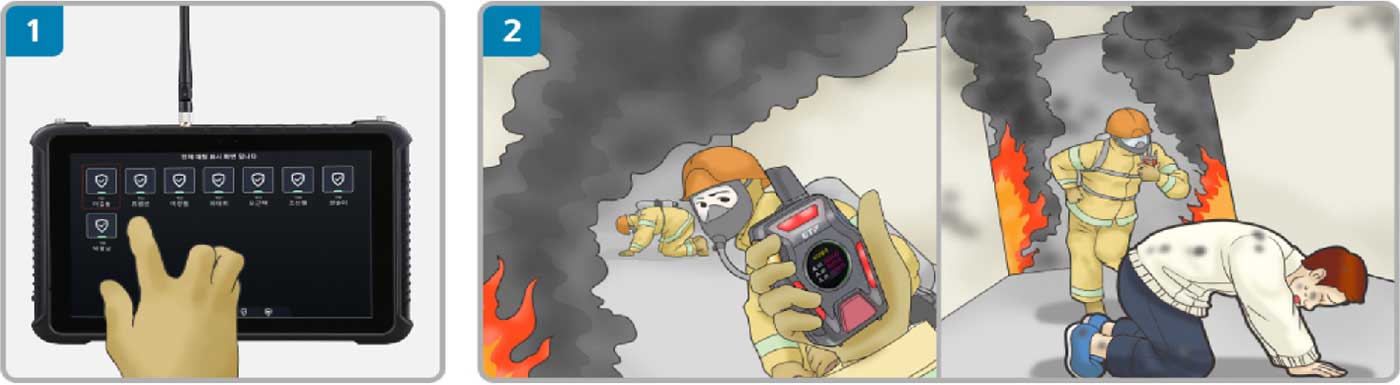

When the CD receives a mayday call, the fire chief at a Fighter Control Base can send a rescue signal and location to nearby firefighters for assistance.
On-site personnel with PDs receive and confirm the message from the base and swiftly head toward the rescue location.

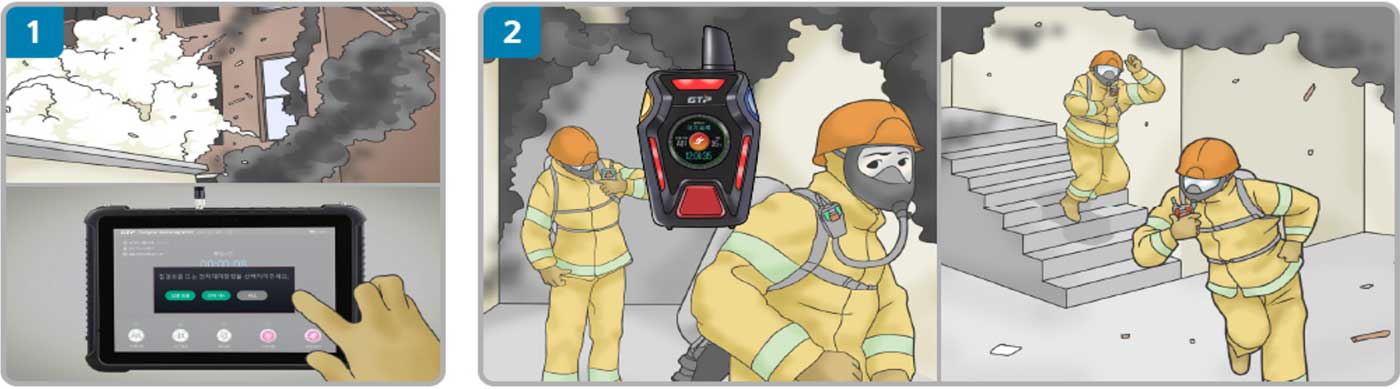

In the event of emergency outbreak, such as a building collapse, the base sends an evacuation signal to PDs to alert all on-site personnel.
Upon receiving the evacuation signal, PDs show red LED lights with audible alarms and help on-site personnel promptly evacuate the area.

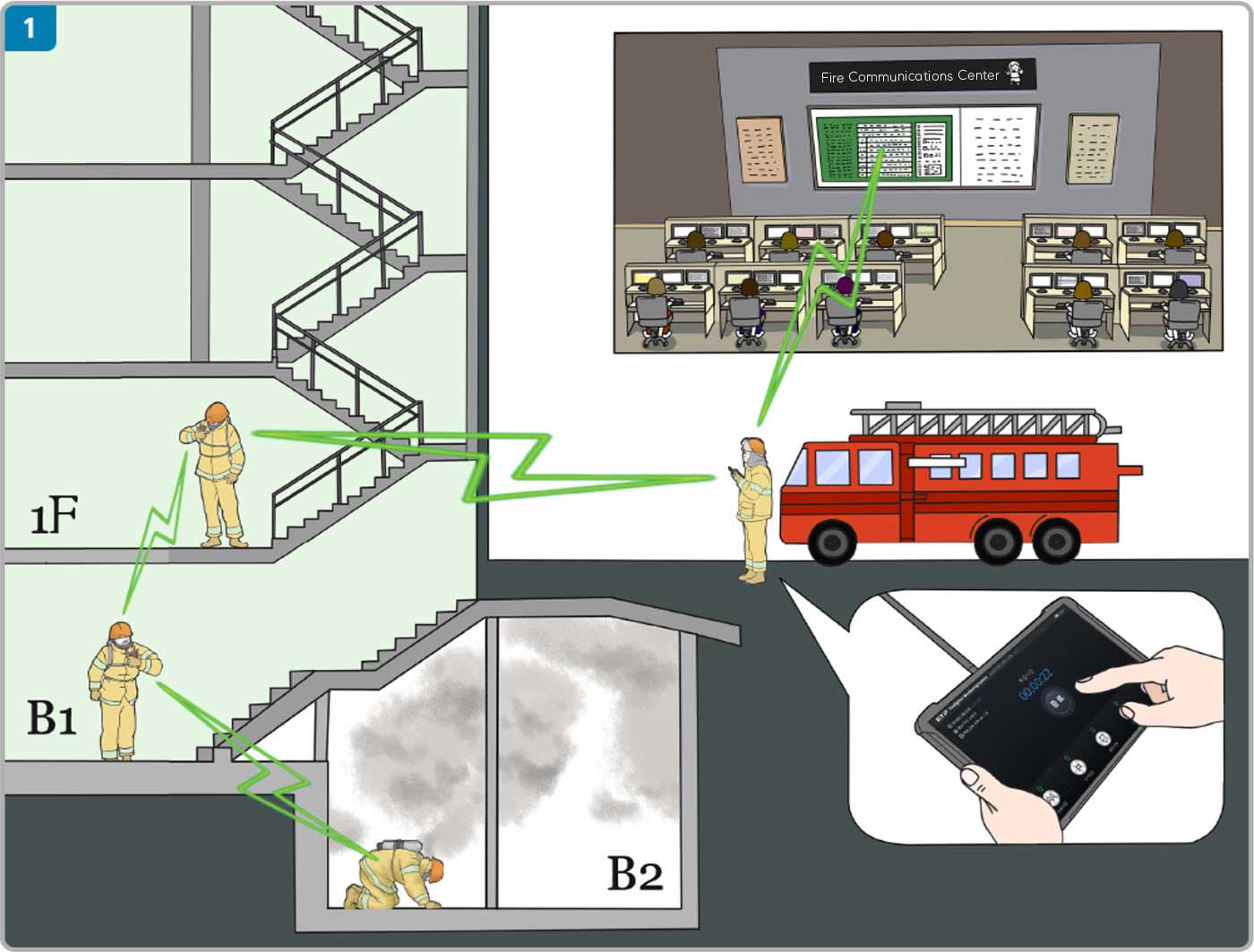

If a firefighter encounters an emergency situation in communication black spots, such as a building basement, the emergency signal can be transmitted to the CD using the repeater function of fellow firefighters' PDs.
